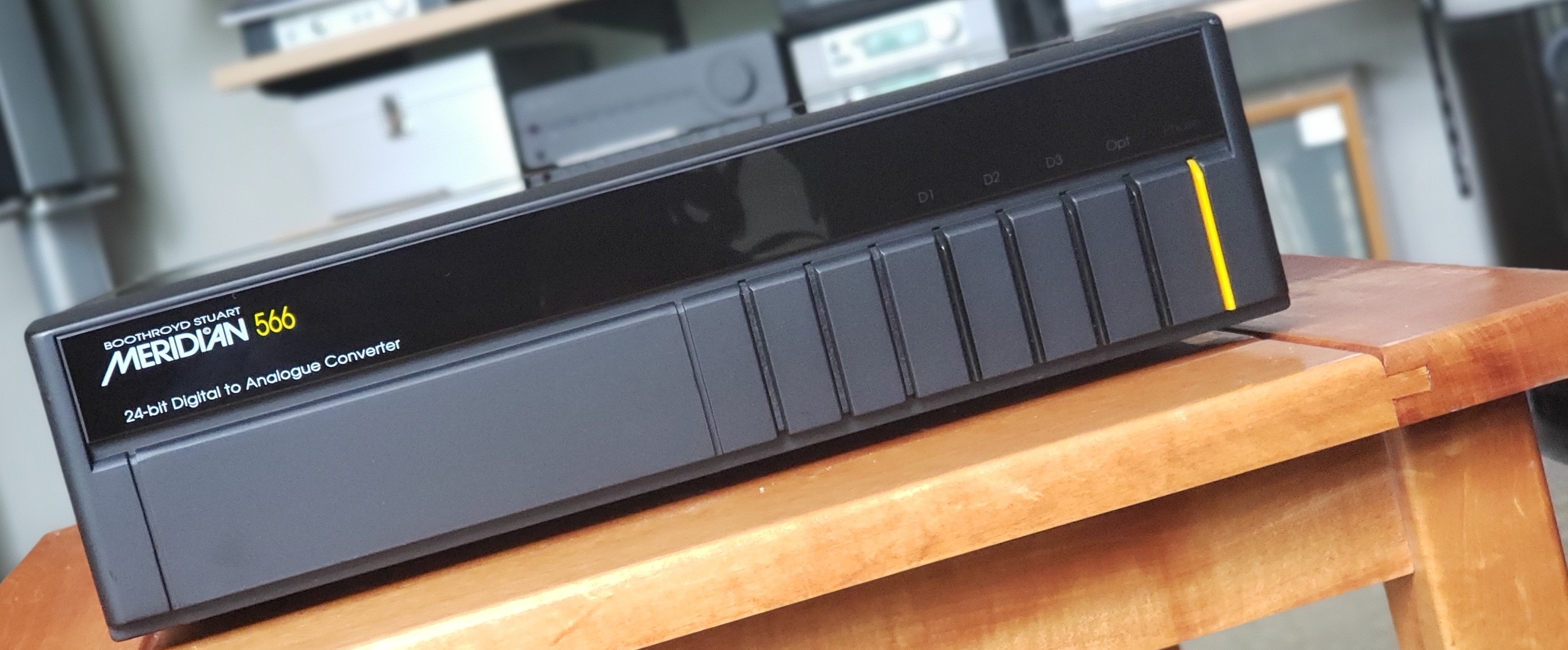

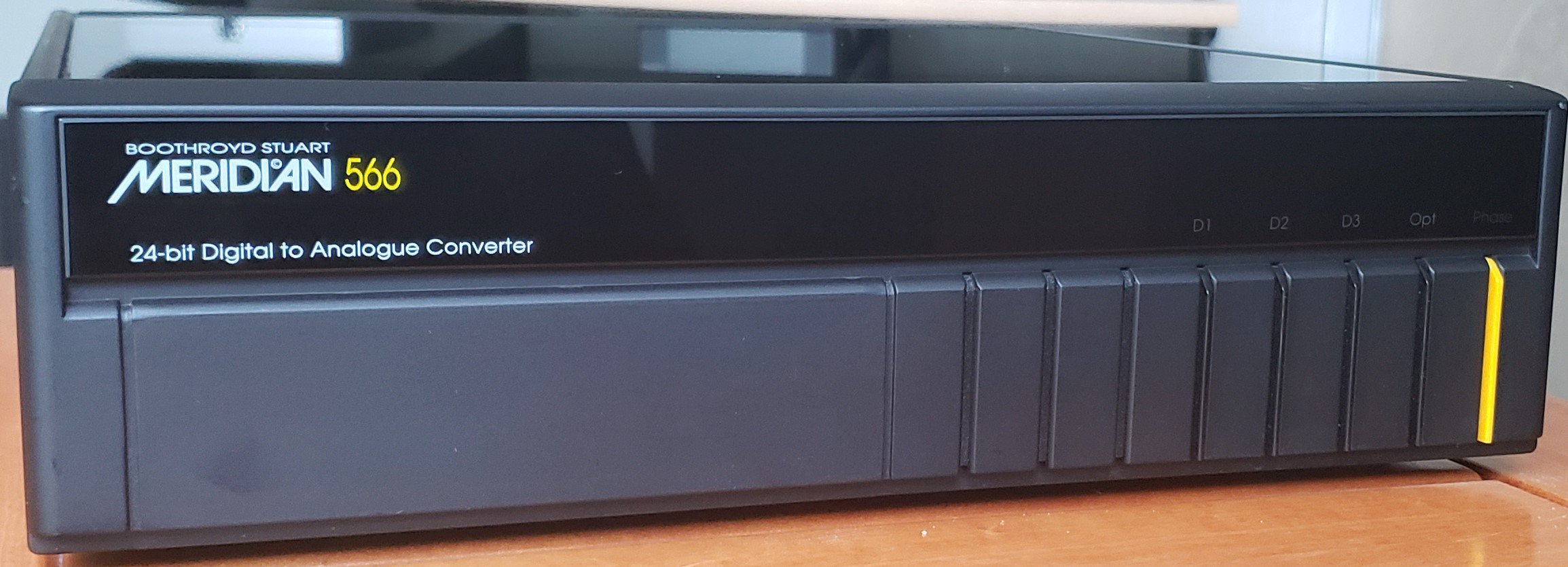

Meridian 566 24-bit Digital to Analog Converter


New Ex- Demo Trade-In

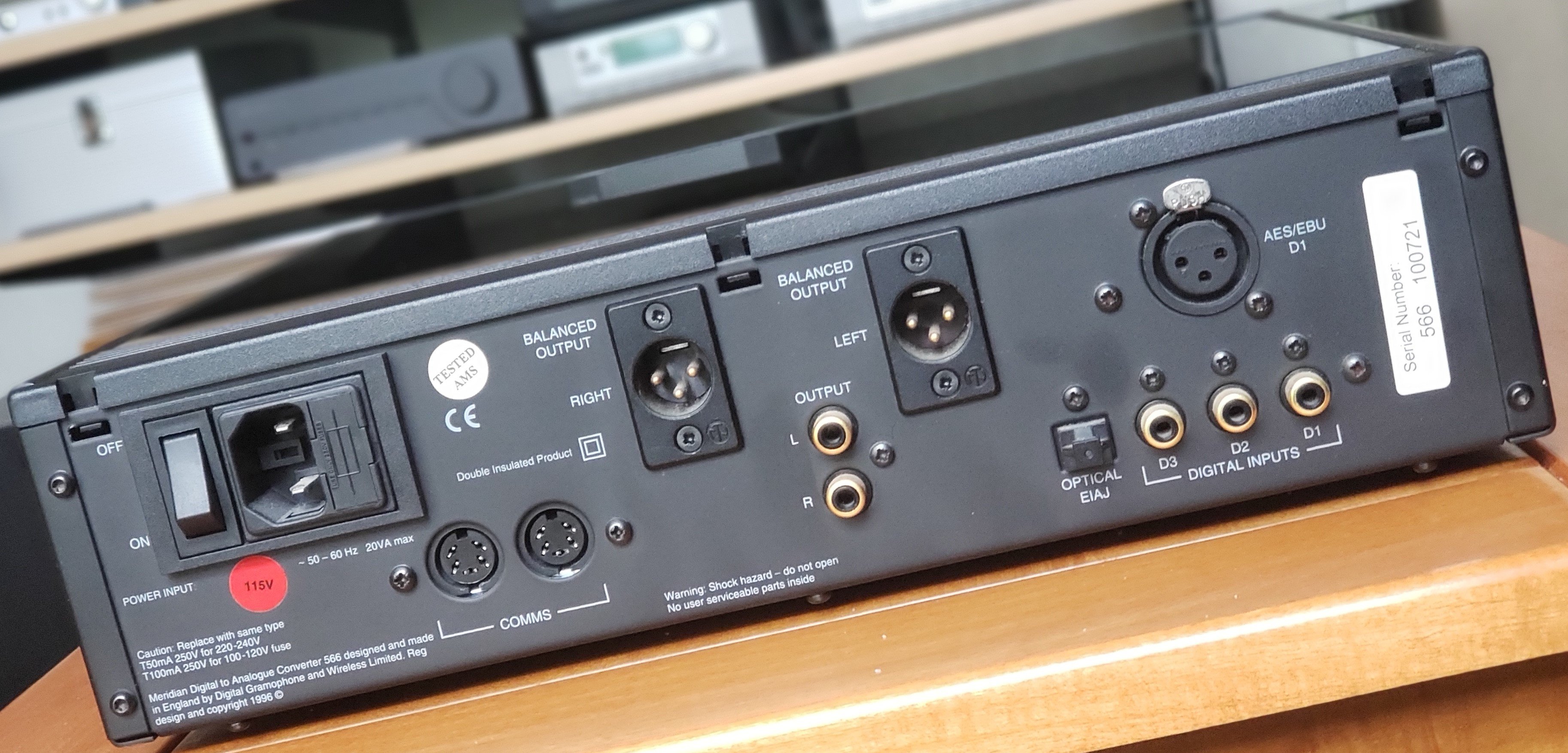

Meridian has a strong history in stand-alone Digital/Analogue converters. The 566 is the latest in a long progression that began with the famous 203 DAC in 1988. The 566 incorporates the best of Meridian’s converter technology – including the lowest jitter and brand-new 24- bit conversion. The 566 is capable of decoding digital signals from a wide range of sources and provides three digital inputs and one optical input, and uses the latest 24-bit dual-differential delta-sigma digital to analogue converter, combined with balanced Class A output amplifiers, to achieve extremely low distortion.

  • Conversion - Dual differential Delta Sigma, 128 times oversampled at 2 bits per channel giving 24 bits resolution.
  • Jitter - Less than 1ps rms.
  • Noise and distortion - Less than -95dB.
  • Display - Illuminated legends for EQ, Lock, 44.1kHz, and Phase.
  • Finish - Black textured enamel and glass.
  • Dimensions - 88mm x 321mm x 332mm (3.46" x 12.64" x 13.07").
  • Weight - 6.4kg (14lbs)
